tikz

fdpyutils.tikz.matshow.TikzMatrix

TikzMatrix(mat: Union[Tensor, ndarray])

Class to visualize a matrix with TikZ.

Attributes:

  • TEMPLATE (str) –

    Template TikZ code containing placeholders that will be substituted with content when saving a figure.

Examples:

>>> from numpy import linspace
>>> mat = linspace(0, 1, num=30).reshape(3, 10)
>>> savepath = "mat.tex"
>>> tikz_mat = TikzMatrix(mat)
>>> tikz_mat.highlight(1, 0, fill="blue", fill_opacity=0.5)
>>> # NOTE to compile, you need `pdflatex`
>>> tikz_mat.save(savepath, compile=False)
  • Example image
  • I used this to visualize the structured matrices in our SINGD paper.

Store the matrix internally.

Parameters:

  • mat (Union[Tensor, ndarray]) –

    The matrix that will be visualized as PyTorch tensor or NumPy array.

Raises:

  • ValueError –

    If the supplied array is not 2d.

Source code in fdpyutils/tikz/matshow.py
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
def __init__(self, mat: Union[Tensor, ndarray]) -> None:
    """Store the matrix internally.

    Args:
        mat: The matrix that will be visualized as PyTorch tensor or NumPy array.

    Raises:
        ValueError: If the supplied array is not 2d.
    """
    if mat.ndim != 2:
        raise ValueError(f"Expected 2d array. Got {mat.ndim}d.")
    self.mat = mat

    self.grid = "major"
    self.colormap = "colormap/blackwhite"
    self.vmin: Union[float, None] = 0.0  # color bar minimum
    self.vmax: Union[float, None] = 1.0  # color bar maximum

    self.extra_commands = []
    self.extra_preamble = []

highlight

highlight(column: int, row: int, fill: str = 'red', fill_opacity: float = 0.5) -> None

Highlight a pixel in the matrix.

Parameters:

  • column (int) –

    column index of the pixel to highlight.

  • row (int) –

    row index of the pixel to highlight.

  • fill (str, default: 'red' ) –

    colour to fill the pixel with. Default: 'red'.

  • fill_opacity (float, default: 0.5 ) –

    opacity of the highlighting. Default: 0.5.

Source code in fdpyutils/tikz/matshow.py
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
def highlight(
    self, column: int, row: int, fill: str = "red", fill_opacity: float = 0.5
) -> None:
    """Highlight a pixel in the matrix.

    Args:
        column: column index of the pixel to highlight.
        row: row index of the pixel to highlight.
        fill: colour to fill the pixel with. Default: `'red'`.
        fill_opacity: opacity of the highlighting. Default: `0.5`.
    """
    self.extra_commands.append(
        rf"\draw [line width=0, fill={fill}, fill opacity={fill_opacity}] "
        + f"({column}, {row}) rectangle ++(1, 1);"
    )

save

save(savepath: str, compile: bool = False)

Save the matrix plot as standalone TikZ figure and maybe build to pdf.

Parameters:

  • savepath (str) –

    Path to save the figure to (including '.tex').

  • compile (bool, default: False ) –

    Whether to compile the TikZ figure to pdf. Default is False.

Source code in fdpyutils/tikz/matshow.py
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
def save(self, savepath: str, compile: bool = False):
    """Save the matrix plot as standalone TikZ figure and maybe build to pdf.

    Args:
        savepath: Path to save the figure to (including `'.tex'`).
        compile: Whether to compile the TikZ figure to pdf. Default is `False`.
    """
    template = self.TEMPLATE

    # NOTE matrix plot requires two rows and columns to figure out the cell size.
    # For single rows/columns we expand them into two and then limit their
    # visibility by setting the axis limits.
    y_max, x_max = self.mat.shape

    mat = self.mat
    if y_max == 1:
        assert isinstance(mat, Tensor)
        mat = mat.expand(2, -1)
    elif x_max == 1:
        assert isinstance(mat, Tensor)
        mat = mat.expand(-1, 2)
    rows, cols = mat.shape

    content = ["x\ty\tz"]
    content.extend(
        f"{float(col + 0.5)}\t{float(row + 0.5)}\t{mat[row, col]}"
        for row, col in product(range(rows), range(cols))
    )
    content = "\n".join(content)

    for placeholder, replacement in [
        ("PLACEHOLDER_CONTENT", content),
        ("PLACEHOLDER_XMAX", str(x_max)),
        ("PLACEHOLDER_YMAX", str(y_max)),
        ("PLACEHOLDER_WIDTH", str(2 * x_max)),
        ("PLACEHOLDER_HEIGHT", str(2 * y_max)),
        ("PLACEHOLDER_ROWS", str(rows)),
        ("PLACEHOLDER_COLS", str(cols)),
        ("PLACEHOLDER_COLORMAP", self.colormap),
        ("PLACEHOLDER_GRID", self.grid),
        ("PLACEHOLDER_EXTRA_COMMANDS", "\n".join(self.extra_commands)),
        ("PLACEHOLDER_EXTRA_PREAMBLE", "\n".join(self.extra_preamble)),
        (
            "PLACEHOLDER_COLORBAR_MIN",
            (
                f"% color bar minimum\n    point meta min={self.vmin}"
                if self.vmin is not None
                else ""
            ),
        ),
        (
            "PLACEHOLDER_COLORBAR_MAX",
            (
                f"% color bar maximum\n    point meta max={self.vmax}"
                if self.vmax is not None
                else ""
            ),
        ),
    ]:
        template = template.replace(placeholder, replacement)

    write(template, savepath, compile=compile)

fdpyutils.tikz.tensorshow.TikzTensor

TikzTensor(tensor: Union[Tensor, ndarray])

Class to visualize a tensor with TikZ.

Attributes:

  • TEMPLATE –

    Template TikZ code containing placeholders that will be replaced with content before compilation.

Examples:

>>> from torch import linspace, Size
>>> shape = Size((1, 2, 3, 4, 10))
>>> tensor = linspace(0, 1, shape.numel()).reshape(shape)
>>> savepath = "tensor.tex"
>>> tikz_tensor = TikzTensor(tensor)
>>> tikz_tensor.highlight((0, 0, 0, 3, 1), fill="green", fill_opacity=0.5)
>>> # NOTE to compile, you need `pdflatex`
>>> tikz_tensor.save(savepath, compile=False)

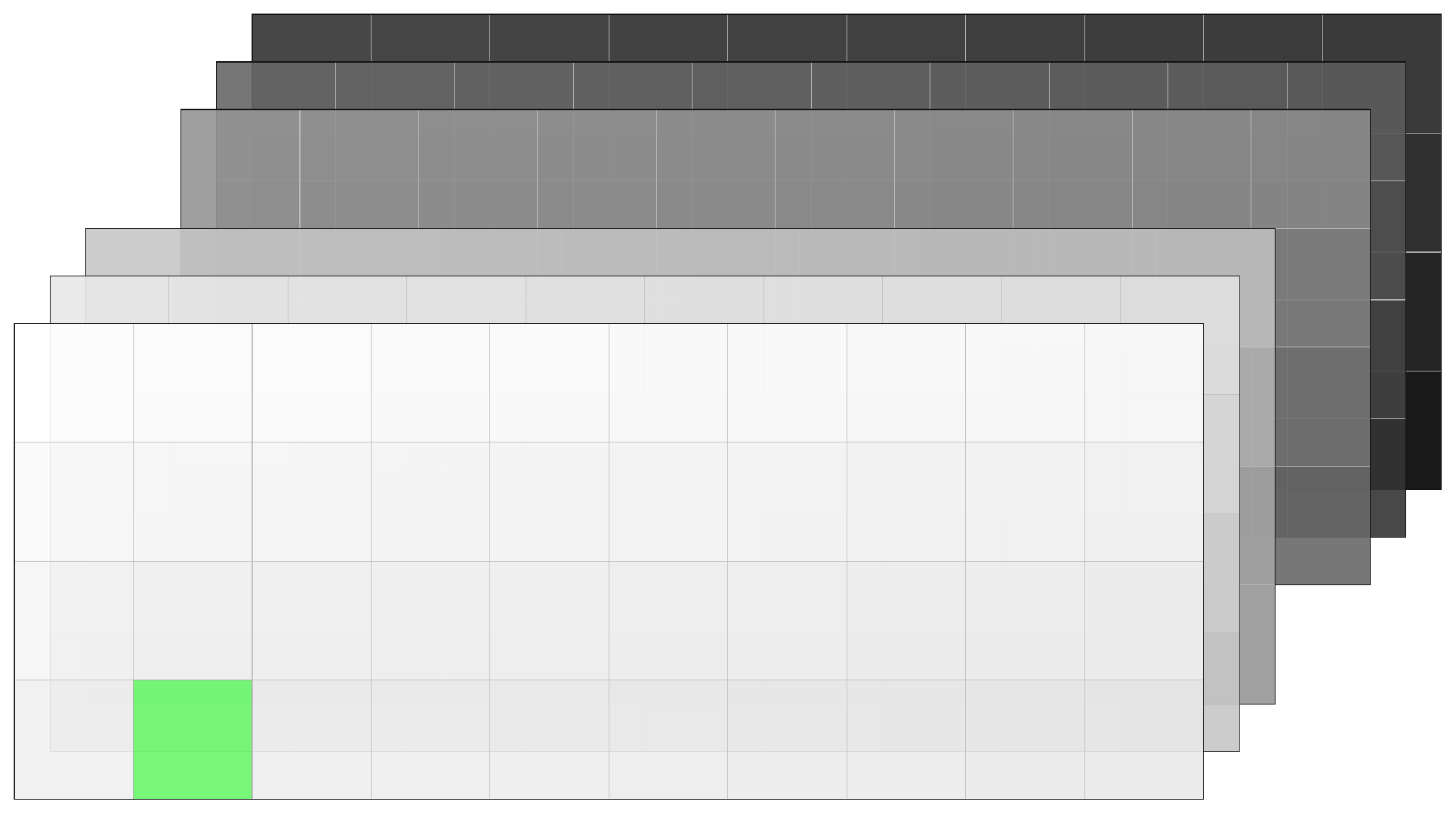

  • Example image

Store the tensor internally.

Parameters:

  • tensor (Union[Tensor, ndarray]) –

    The tensor to visualize. At most 5d.

Raises:

  • NotImplementedError –

    If the tensor has more than 5 dimensions.

Source code in fdpyutils/tikz/tensorshow.py
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
def __init__(self, tensor: Union[Tensor, ndarray]) -> None:
    """Store the tensor internally.

    Args:
        tensor: The tensor to visualize. At most 5d.

    Raises:
        NotImplementedError: If the tensor has more than 5 dimensions.
    """
    max_dim = 5
    ndim = len(tensor.shape)
    if ndim > max_dim:
        raise NotImplementedError(
            f"(d>{max_dim})-tensors are not supported. Got {ndim}d."
        )

    # reshape the tensor into 5d if it has less dimensions
    missing = max_dim - ndim
    shape = (1,) * missing + tensor.shape
    self.tensor = tensor.reshape(shape)

    # stores the style of highlighted pixels
    self.highlighted_entries: List[Tuple[Tuple[int, int, int], Dict]] = []

save

save(savepath: str, compile: bool = True) -> None

Save the TikZ code to visualize the tensor to a file and maybe compile it.

The approach has two stages:

  1. Generate .tex and .pdf files for 2d fibres of the tensor.
  2. Compose the fibres into a TikZ picture displaying the entire tensor.

Parameters:

  • savepath (str) –

    The path to save the TikZ code to.

  • compile (bool, default: True ) –

    Whether to compile the TikZ code to a PDF.

Source code in fdpyutils/tikz/tensorshow.py
103
104
105
106
107
108
109
110
111
112
113
114
115
116
def save(self, savepath: str, compile: bool = True) -> None:
    """Save the TikZ code to visualize the tensor to a file and maybe compile it.

    The approach has two stages:

    1. Generate `.tex` and `.pdf` files for 2d fibres of the tensor.
    2. Compose the fibres into a TikZ picture displaying the entire tensor.

    Args:
        savepath: The path to save the TikZ code to.
        compile: Whether to compile the TikZ code to a PDF.
    """
    self._generate_fibres(savepath, compile=compile)
    self._combine_fibres(savepath, compile=compile)

highlight

highlight(idx: Tuple[int, ...], fill: str = 'VectorOrange', fill_opacity: float = 0.5) -> None

Highlight a pixel in the tensor.

Parameters:

  • idx (Tuple[int, ...]) –

    The index of the pixel to highlight.

  • fill (str, default: 'VectorOrange' ) –

    colour to fill the pixel with. Default: 'VectorOrange'.

  • fill_opacity (float, default: 0.5 ) –

    opacity of the highlighting. Default: 0.5.

Raises:

  • ValueError –

    if the index has incorrect dimensions or is out of bounds.

Source code in fdpyutils/tikz/tensorshow.py
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
def highlight(
    self,
    idx: Tuple[int, ...],
    fill: str = "VectorOrange",
    fill_opacity: float = 0.5,
) -> None:
    """Highlight a pixel in the tensor.

    Args:
        idx: The index of the pixel to highlight.
        fill: colour to fill the pixel with. Default: `'VectorOrange'`.
        fill_opacity: opacity of the highlighting. Default: `0.5`.

    Raises:
        ValueError: if the index has incorrect dimensions or is out of bounds.
    """
    if len(idx) < len(self.tensor.shape):
        idx = (0,) * (len(self.tensor.shape) - len(idx)) + idx
    if len(idx) > len(self.tensor.shape):
        raise ValueError(
            f"Index ({len(idx)}d) has more dimensions than tensor ({len(idx)}d)."
        )
    if any(i >= s for i, s in zip(idx, self.tensor.shape)):
        raise ValueError(
            f"Index {idx} is out of bounds for tensor shape {self.tensor.shape}."
        )

    d1, d2, d3, d4, d5 = idx
    style = {"column": d5, "row": d4, "fill": fill, "fill_opacity": fill_opacity}
    entry = ((d1, d2, d3), style)
    if entry not in self.highlighted_entries:
        self.highlighted_entries.append(entry)

fdpyutils.tikz.conv2d.TikzConv2d

TikzConv2d(weight: Tensor, x: Tensor, savedir: str, stride: Tuple[int, int] = (1, 1), padding: Tuple[int, int] = (0, 0), dilation: Tuple[int, int] = (1, 1))

Class for visualizing 2d convolutions with TikZ.

Examples:

>>> from torch import manual_seed, rand
>>> _ = manual_seed(0)
>>> # convolution hyper-parameters
>>> N, C_in, I1, I2 = 2, 2, 4, 5
>>> G, C_out, K1, K2 = 1, 3, 2, 3
>>> P = (0, 1) # non-zero padding along one dimension
>>> weight = rand(C_out, C_in // G, K1, K2)
>>> x = rand(N, C_in, I1, I2)
>>> # NOTE to compile, you need `pdflatex`
>>> TikzConv2d(weight, x, "conv2d", padding=P).save(compile=False)

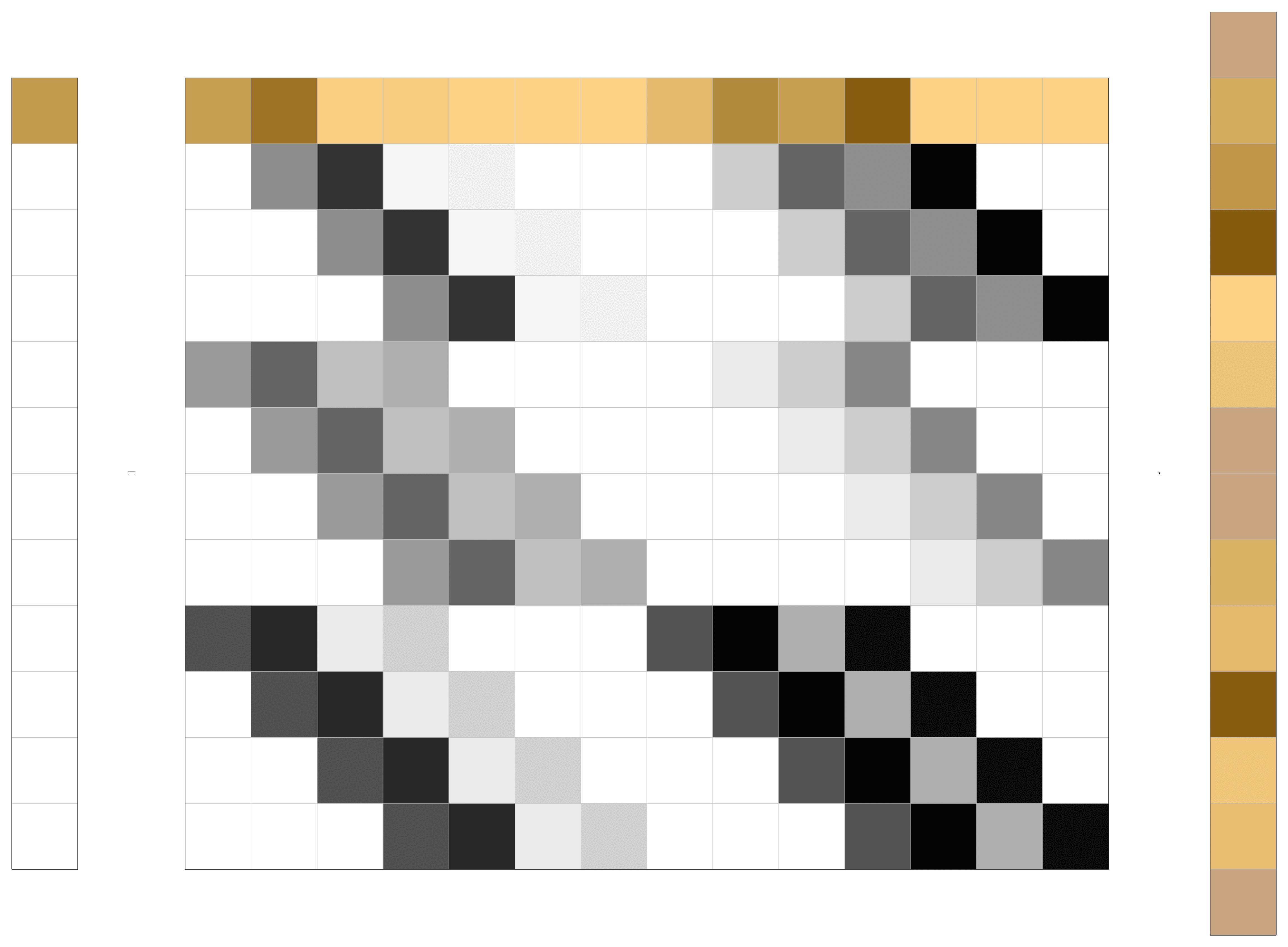

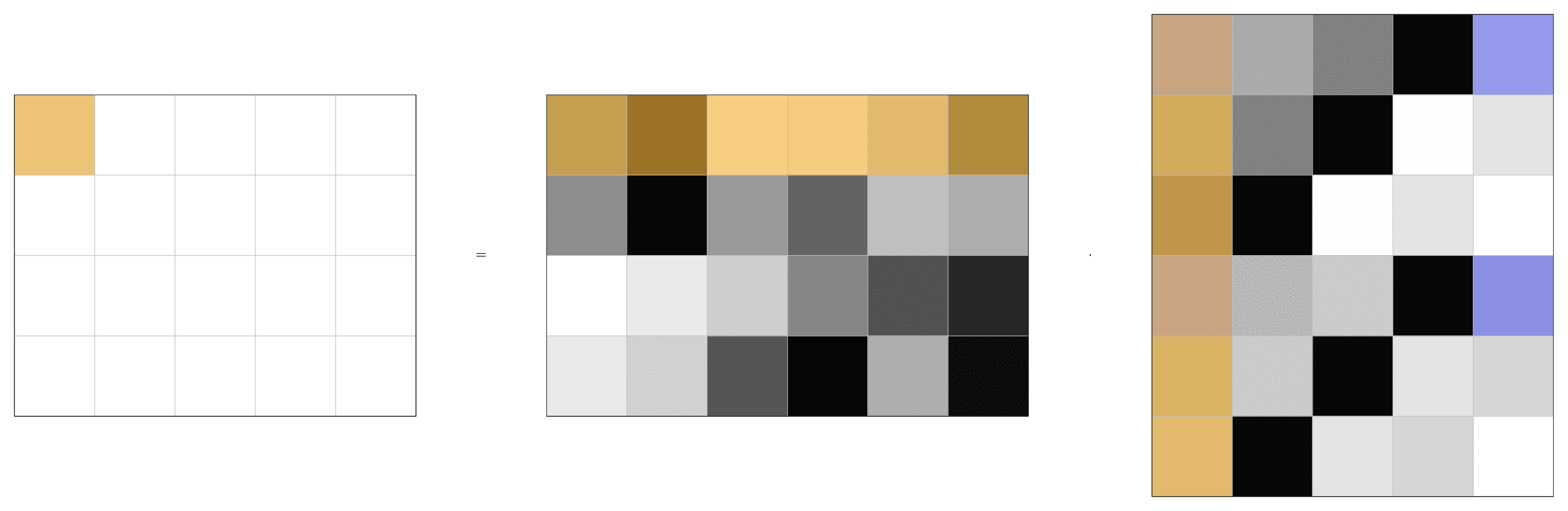

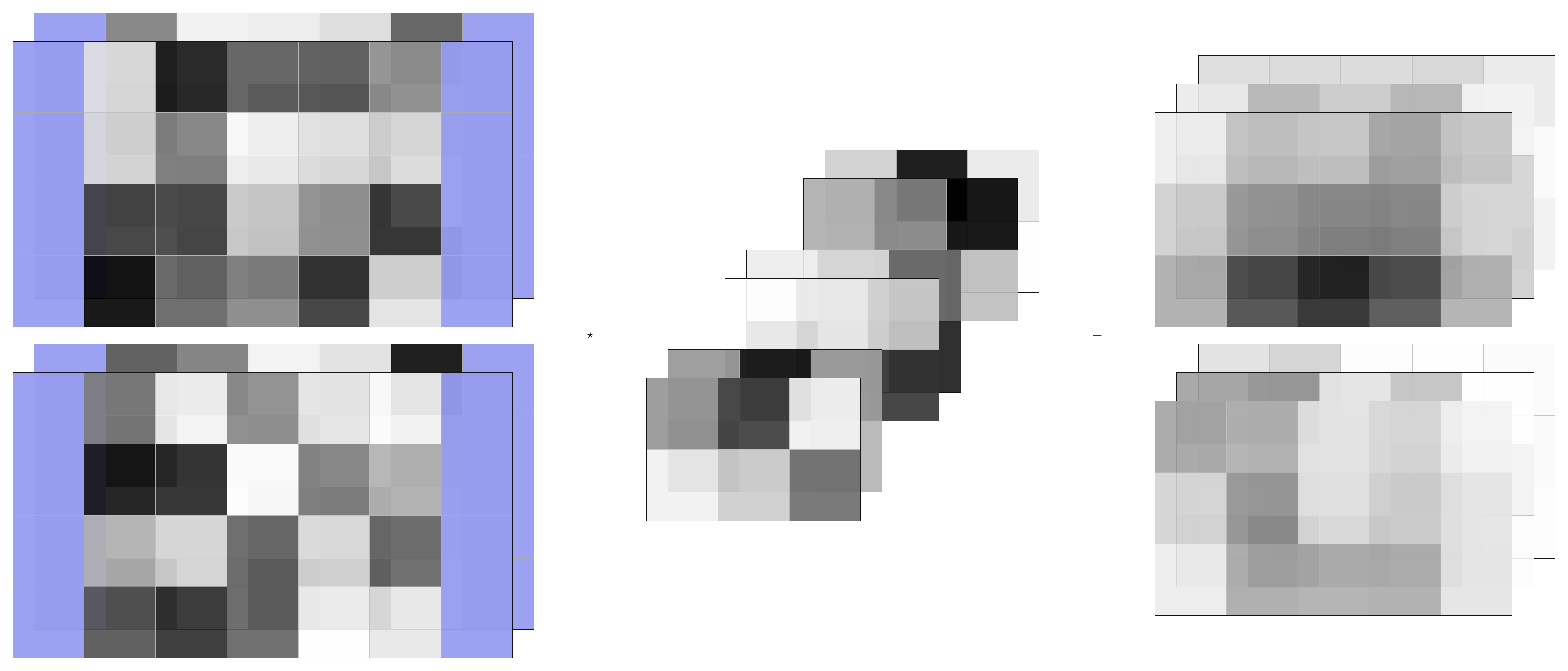

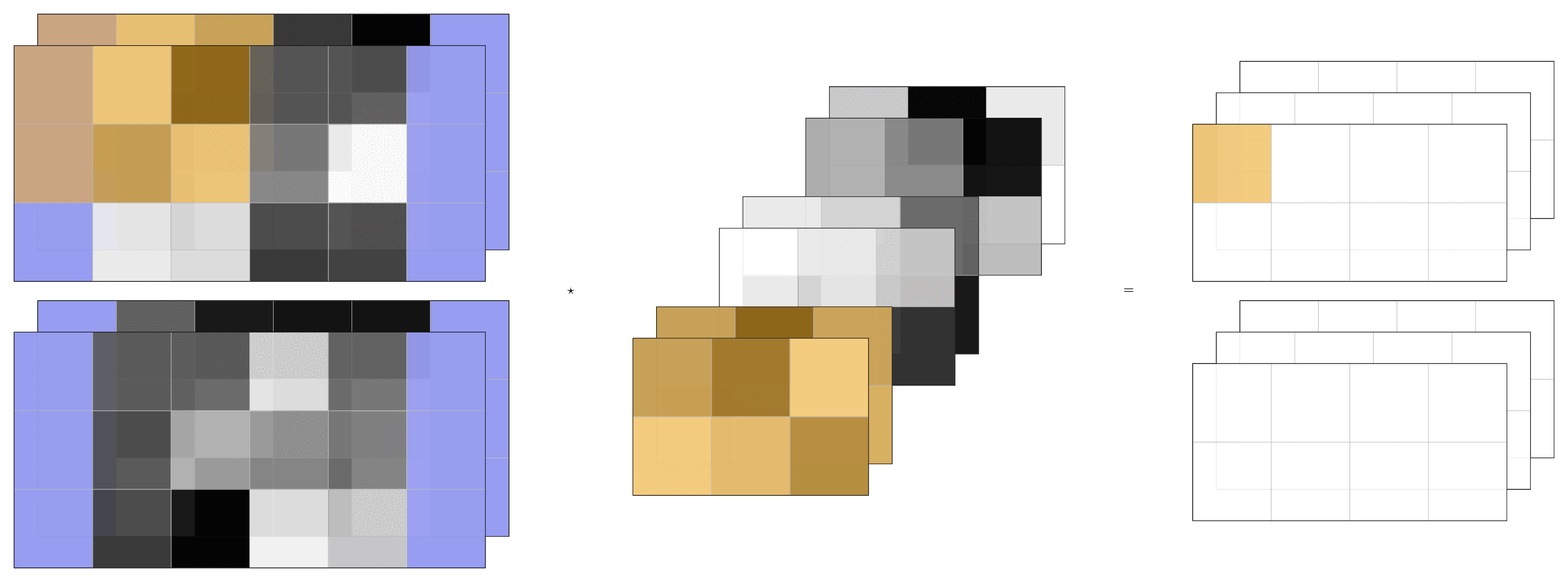

  • Example image (padded pixels are highlighted)
  • I used this code to create the visualizations for my talk at Perimeter Institute.

Store convolution tensors and hyper-parameters for the animated convolution.

Parameters:

  • weight (Tensor) –

    Convolution kernel. Has shape [C_out, C_in // G, K1, K2].

  • x (Tensor) –

    Input tensor. Has shape [N, C_in, I1, I2].

  • savedir (str) –

    Directory under which the TikZ code and pdf images are saved.

  • stride (Tuple[int, int], default: (1, 1) ) –

    Stride of the convolution. Default: (1, 1).

  • padding (Tuple[int, int], default: (0, 0) ) –

    Padding of the convolution. Default: (0, 0).

  • dilation (Tuple[int, int], default: (1, 1) ) –

    Dilation of the convolution. Default: (1, 1).

Raises:

  • ValueError –

    If weight or x are not 4d tensors.

Source code in fdpyutils/tikz/conv2d.py
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
def __init__(
    self,
    weight: Tensor,
    x: Tensor,
    savedir: str,
    stride: Tuple[int, int] = (1, 1),
    padding: Tuple[int, int] = (0, 0),
    dilation: Tuple[int, int] = (1, 1),
):
    """Store convolution tensors and hyper-parameters for the animated convolution.

    Args:
        weight: Convolution kernel. Has shape `[C_out, C_in // G, K1, K2]`.
        x: Input tensor. Has shape `[N, C_in, I1, I2]`.
        savedir: Directory under which the TikZ code and pdf images are saved.
        stride: Stride of the convolution. Default: `(1, 1)`.
        padding: Padding of the convolution. Default: `(0, 0)`.
        dilation: Dilation of the convolution. Default: `(1, 1)`.

    Raises:
        ValueError: If `weight` or `x` are not 4d tensors.
    """
    if weight.ndim != 4 or x.ndim != 4:
        raise ValueError(
            f"Expected 4d `weight` and `x`, but got {weight.ndim}d and {x.ndim}d."
        )
    self.savedir = savedir

    # store hyper-parameters
    self.N, self.C_in, self.I1, self.I2 = x.shape
    self.C_out, _, self.K1, self.K2 = weight.shape
    self.G = self.C_in // weight.shape[1]
    self.S1, self.S2 = stride
    self.P1, self.P2 = padding
    self.D1, self.D2 = dilation

    # explicitly pad x
    x = pad(x, (self.P2, self.P2, self.P1, self.P1))

    # convolution index pattern tensors and output sizes
    self.pattern1 = index_pattern(
        self.I1 + 2 * self.P1, self.K1, stride=self.S1, padding=0, dilation=self.D1
    )
    self.pattern2 = index_pattern(
        self.I2 + 2 * self.P2, self.K2, stride=self.S2, padding=0, dilation=self.D2
    )
    self.O1 = self.pattern1.shape[1]
    self.O2 = self.pattern2.shape[1]

    # store all tensors with separated channel groups
    x = rearrange(x, "n (g c_in) i1 i2 -> n g c_in i1 i2", g=self.G)
    weight = rearrange(
        weight, "(g c_out) c_in k1 k2 -> g c_out c_in k1 k2", g=self.G
    )
    output = einsum(
        x,
        self.pattern1.float(),
        self.pattern2.float(),
        weight,
        "n g c_in i1 i2, k1 o1 i1, k2 o2 i2, g c_out c_in k1 k2 -> n g c_out o1 o2",
    )

    # normalize all tensors to use the colour map's full range
    self.x = self.normalize(x)
    self.weight = self.normalize(weight)
    self.output = self.normalize(output)

save

save(compile: bool = True)

Create the images of the convolution's input, weight, and output tensors.

This is done in two steps:

  1. Compile the input, weight, and output tensors.
  2. Combine them into one image.

Parameters:

  • compile (bool, default: True ) –

    Whether to compile the TikZ code into a pdf image. Default: True.

Source code in fdpyutils/tikz/conv2d.py
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
    def save(self, compile: bool = True):
        """Create the images of the convolution's input, weight, and output tensors.

        This is done in two steps:

        1. Compile the input, weight, and output tensors.
        2. Combine them into one image.

        Args:
            compile: Whether to compile the TikZ code into a pdf image. Default: `True`.
        """
        self._generate_tensors(compile=compile)

        TEX_TEMPLATE = r"""\documentclass[tikz]{standalone}

\usepackage{tikz}
\usetikzlibrary{positioning}

\begin{document}
\begin{tikzpicture}
  \node (input) {\includegraphics{DATAPATH/tensors/input}};
  \node [right=1cm of input] (star) {$\star$};
  \node [right=1cm of star] (kernel) {%
    \includegraphics{DATAPATH/tensors/weight}%
  };
  \node [right=1cm of kernel] (equal) {$=$};
  \node [right=1cm of equal] (output) {%
    \includegraphics{DATAPATH/tensors/output}%
  };
\end{tikzpicture}
\end{document}"""
        code = TEX_TEMPLATE.replace("DATAPATH", self.savedir)
        savepath = path.join(self.savedir, "example.tex")
        write(code, savepath, compile=compile)

fdpyutils.tikz.conv2d.TikzConv2dAnimated

TikzConv2dAnimated(weight: Tensor, x: Tensor, savedir: str, stride: Tuple[int, int] = (1, 1), padding: Tuple[int, int] = (0, 0), dilation: Tuple[int, int] = (1, 1))

Class for visualizing animated 2d convolutions with TikZ.

Examples:

>>> from torch import manual_seed, rand
>>> _ = manual_seed(0)
>>> N, C_in, I1, I2 = 2, 2, 3, 4
>>> G, C_out, K1, K2 = 1, 3, 2, 3
>>> P = (0, 1) # non-zero padding along one dimension
>>> weight = rand(C_out, C_in // G, K1, K2)
>>> x = rand(N, C_in, I1, I2)
>>> # NOTE to compile, you need `pdflatex`
>>> TikzConv2dAnimated(weight, x, "conv2d", padding=P).save(
...     compile=False, max_frames=10
... )
  • Example animation (padding pixels are highlighted) If you set compile=True above, there will be an example.pdf file in the supplied directory. You can compile it to a .gif using the command
    convert -verbose -delay 100 -loop 0 -density 300 example.pdf example.gif
    which requires the imagemagick library.
  • I used this code to create the visualizations for my talk at Perimeter Institute.

Attributes:

  • GROUP_COLORS –

    Colors used to highlight different channel groups.

Store convolution tensors and hyper-parameters for the animated convolution.

Parameters:

  • weight (Tensor) –

    Convolution kernel. Has shape [C_out, C_in // G, K1, K2].

  • x (Tensor) –

    Input tensor. Has shape [N, C_in, I1, I2].

  • savedir (str) –

    Directory under which the TikZ code and pdf images are saved.

  • stride (Tuple[int, int], default: (1, 1) ) –

    Stride of the convolution. Default: (1, 1).

  • padding (Tuple[int, int], default: (0, 0) ) –

    Padding of the convolution. Default: (0, 0).

  • dilation (Tuple[int, int], default: (1, 1) ) –

    Dilation of the convolution. Default: (1, 1).

Raises:

  • ValueError –

    If weight or x are not 4d tensors.

Source code in fdpyutils/tikz/conv2d.py
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
def __init__(
    self,
    weight: Tensor,
    x: Tensor,
    savedir: str,
    stride: Tuple[int, int] = (1, 1),
    padding: Tuple[int, int] = (0, 0),
    dilation: Tuple[int, int] = (1, 1),
):
    """Store convolution tensors and hyper-parameters for the animated convolution.

    Args:
        weight: Convolution kernel. Has shape `[C_out, C_in // G, K1, K2]`.
        x: Input tensor. Has shape `[N, C_in, I1, I2]`.
        savedir: Directory under which the TikZ code and pdf images are saved.
        stride: Stride of the convolution. Default: `(1, 1)`.
        padding: Padding of the convolution. Default: `(0, 0)`.
        dilation: Dilation of the convolution. Default: `(1, 1)`.

    Raises:
        ValueError: If `weight` or `x` are not 4d tensors.
    """
    if weight.ndim != 4 or x.ndim != 4:
        raise ValueError(
            f"Expected 4d `weight` and `x`, but got {weight.ndim}d and {x.ndim}d."
        )
    self.savedir = savedir

    # store hyper-parameters
    self.N, self.C_in, self.I1, self.I2 = x.shape
    self.C_out, _, self.K1, self.K2 = weight.shape
    self.G = self.C_in // weight.shape[1]
    self.S1, self.S2 = stride
    self.P1, self.P2 = padding
    self.D1, self.D2 = dilation

    # explicitly pad x
    x = pad(x, (self.P2, self.P2, self.P1, self.P1))

    # convolution index pattern tensors and output sizes
    self.pattern1 = index_pattern(
        self.I1 + 2 * self.P1, self.K1, stride=self.S1, padding=0, dilation=self.D1
    )
    self.pattern2 = index_pattern(
        self.I2 + 2 * self.P2, self.K2, stride=self.S2, padding=0, dilation=self.D2
    )
    self.O1 = self.pattern1.shape[1]
    self.O2 = self.pattern2.shape[1]

    # store all tensors with separated channel groups
    x = rearrange(x, "n (g c_in) i1 i2 -> n g c_in i1 i2", g=self.G)
    weight = rearrange(
        weight, "(g c_out) c_in k1 k2 -> g c_out c_in k1 k2", g=self.G
    )
    output = einsum(
        x,
        self.pattern1.float(),
        self.pattern2.float(),
        weight,
        "n g c_in i1 i2, k1 o1 i1, k2 o2 i2, g c_out c_in k1 k2 -> n g c_out o1 o2",
    )

    # normalize all tensors to use the colour map's full range
    self.x = self.normalize(x)
    self.weight = self.normalize(weight)
    self.output = self.normalize(output)

save

save(compile: bool = True, max_frames: Optional[int] = None)

Create the frames of the convolution's input, weight, and output tensors.

This is done in two steps. For each frame:

  1. Generate the input, weight, and output tensors.
  2. Compile the full tensors into one pdf image.

Parameters:

  • compile (bool, default: True ) –

    Whether to compile the TikZ code into a pdf image. Default: True.

  • max_frames (Optional[int], default: None ) –

    Maximum number of frames to generate. Default: None.

Source code in fdpyutils/tikz/conv2d.py
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
    def save(self, compile: bool = True, max_frames: Optional[int] = None):
        """Create the frames of the convolution's input, weight, and output tensors.

        This is done in two steps. For each frame:

        1. Generate the input, weight, and output tensors.
        2. Compile the full tensors into one pdf image.

        Args:
            compile: Whether to compile the TikZ code into a pdf image. Default: `True`.
            max_frames: Maximum number of frames to generate. Default: `None`.
        """
        self._generate_tensors(compile=compile, max_frames=max_frames)

        num_frames = self.output.numel() if max_frames is None else max_frames
        frames = [
            r"""\begin{tikzpicture}
  \node (input) {\includegraphics{DATAPATH/tensors/input_frame_FRAME}};
  \node [right=1cm of input] (star) {$\star$};
  \node [right=1cm of star] (kernel) {%
    \includegraphics{DATAPATH/tensors/weight_frame_FRAME}%
  };
  \node [right=1cm of kernel] (equal) {$=$};
  \node [right=1cm of equal] (output) {%
    \includegraphics{DATAPATH/tensors/output_frame_FRAME}%
  };
\end{tikzpicture}""".replace(
                "DATAPATH", self.savedir
            ).replace(
                "FRAME", str(n)
            )
            for n in range(num_frames)
        ]
        code = r"""\documentclass[tikz]{standalone}

\usepackage{tikz}
\usetikzlibrary{positioning}

\begin{document}
CONTENT
\end{document}""".replace(
            "CONTENT", "\n".join(frames)
        )
        savepath = path.join(self.savedir, "example.tex")
        write(code, savepath, compile=compile)

fdpyutils.tikz.unfold.TikzUnfoldAnimated

TikzUnfoldAnimated(weight: Tensor, x: Tensor, savedir: str, stride: Tuple[int, int] = (1, 1), padding: Tuple[int, int] = (0, 0), dilation: Tuple[int, int] = (1, 1))

Class for visualizing input unfolding of a 2d convolution with TikZ.

Examples:

>>> from torch import manual_seed, rand
>>> _ = manual_seed(0)
>>> N, C_in, I1, I2 = 1, 2, 5, 1
>>> G, C_out, K1, K2 = 1, 4, 3, 1
>>> P = (1, 0) # non-zero padding along one dimension
>>> weight = rand(C_out, C_in // G, K1, K2)
>>> x = rand(N, C_in, I1, I2)
>>> # NOTE to compile, you need `pdflatex`
>>> TikzUnfoldAnimated(weight, x, "unfold", padding=P).save(
...     compile=False, max_frames=10
... )
  • Example animation (left is matricized output, middle is matricized kernel, right is unfolded input) If you set compile=True above, there will be an example.pdf file in the supplied directory. You can compile it to a .gif using the command
    convert -verbose -delay 100 -loop 0 -density 300 example.pdf example.gif
    which requires the imagemagick library.
  • I used this code to create the visualizations for my talk at Perimeter Institute.

Store convolution hyper-parameters for the animated input unfolding.

Parameters:

  • weight (Tensor) –

    Convolution kernel. Has shape [C_out, C_in // G, K1, K2].

  • x (Tensor) –

    Input tensor. Has shape [N, C_in, I1, I2].

  • savedir (str) –

    Directory under which the TikZ code and pdf images are saved.

  • stride (Tuple[int, int], default: (1, 1) ) –

    Stride of the convolution. Default: (1, 1).

  • padding (Tuple[int, int], default: (0, 0) ) –

    Padding of the convolution. Default: (0, 0).

  • dilation (Tuple[int, int], default: (1, 1) ) –

    Dilation of the convolution. Default: (1, 1).

Source code in fdpyutils/tikz/unfold.py
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
def __init__(
    self,
    weight: Tensor,
    x: Tensor,
    savedir: str,
    stride: Tuple[int, int] = (1, 1),
    padding: Tuple[int, int] = (0, 0),
    dilation: Tuple[int, int] = (1, 1),
):
    """Store convolution hyper-parameters for the animated input unfolding.

    Args:
        weight: Convolution kernel. Has shape `[C_out, C_in // G, K1, K2]`.
        x: Input tensor. Has shape `[N, C_in, I1, I2]`.
        savedir: Directory under which the TikZ code and pdf images are saved.
        stride: Stride of the convolution. Default: `(1, 1)`.
        padding: Padding of the convolution. Default: `(0, 0)`.
        dilation: Dilation of the convolution. Default: `(1, 1)`.
    """
    super().__init__(
        weight, x, savedir, stride=stride, padding=padding, dilation=dilation
    )
    self.x_unfolded = einsum(
        self.x,
        self.pattern1.float(),
        self.pattern2.float(),
        "n g c i1 i2, k1 o1 i1, k2 o2 i2 -> n g (c k1 k2) (o1 o2)",
    )
    self.weight_as_mat = rearrange(
        self.weight, "g c_out c_in k1 k2 -> g c_out (c_in k1 k2)"
    )
    self.output_as_mat = rearrange(
        self.output, "n g c_out o1 o2 -> n g c_out (o1 o2)"
    )

save

save(compile: bool = True, max_frames: Optional[int] = None) -> None

Create frames of the unfolded input, matricized kernel and matricized output.

This is done in two steps. For each frame:

  1. Generate the individual tensors.
  2. Compile the full tensors into one pdf image.

Parameters:

  • compile (bool, default: True ) –

    Whether to compile the TikZ code into a pdf image. Default: True.

  • max_frames (Optional[int], default: None ) –

    Maximum number of frames to generate. Default: None.

Source code in fdpyutils/tikz/unfold.py
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
    def save(self, compile: bool = True, max_frames: Optional[int] = None) -> None:
        """Create frames of the unfolded input, matricized kernel and matricized output.

        This is done in two steps. For each frame:

        1. Generate the individual tensors.
        2. Compile the full tensors into one pdf image.

        Args:
            compile: Whether to compile the TikZ code into a pdf image. Default: `True`.
            max_frames: Maximum number of frames to generate. Default: `None`.
        """
        self._generate_tensors(compile=compile, max_frames=max_frames)

        num_frames = self.output.numel() if max_frames is None else max_frames
        frames = [
            r"""\begin{tikzpicture}
  \node (output) {\includegraphics{DATAPATH/tensors/output_frame_FRAME}};
  \node [right=1cm of output] (equal) {$=$};
  \node [right=1cm of equal] (kernel) {%
    \includegraphics{DATAPATH/tensors/weight_frame_FRAME}%
  };
  \node [right=1cm of kernel] (cdot) {$\cdot$};
  \node [right=1cm of cdot] (input) {%
    \includegraphics{DATAPATH/tensors/input_frame_FRAME}%
  };
\end{tikzpicture}""".replace(
                "DATAPATH", self.savedir
            ).replace(
                "FRAME", str(n)
            )
            for n in range(num_frames)
        ]
        code = r"""\documentclass[tikz]{standalone}

\usepackage{tikz}
\usetikzlibrary{positioning}

\begin{document}
CONTENT
\end{document}""".replace(
            "CONTENT", "\n".join(frames)
        )
        savepath = path.join(self.savedir, "example.tex")
        write(code, savepath, compile=compile)

fdpyutils.tikz.unfold.TikzUnfoldWeightAnimated

TikzUnfoldWeightAnimated(weight: Tensor, x: Tensor, savedir: str, stride: Tuple[int, int] = (1, 1), padding: Tuple[int, int] = (0, 0), dilation: Tuple[int, int] = (1, 1))

Class for visualizing kernel unfolding of a 2d convolution with TikZ.

Examples:

>>> from torch import manual_seed, rand
>>> _ = manual_seed(0)
>>> N, C_in, I1, I2 = 1, 2, 5, 1
>>> G, C_out, K1, K2 = 1, 3, 4, 1
>>> P = (1, 0)
>>> weight = rand(C_out, C_in // G, K1, K2)
>>> x = rand(N, C_in, I1, I2)
>>> # NOTE to compile, you need `pdflatex`
>>> TikzUnfoldWeightAnimated(weight, x, "unfold_weight", padding=P).save(
...    compile=False
... )
  • Example animation (left is vectorized output, middle is unfolded kernel, right is vectorized input) If you set compile=True above, there will be an example.pdf file in the supplied directory. You can compile it to a .gif using the command
    convert -verbose -delay 100 -loop 0 -density 300 example.pdf example.gif
    which requires the imagemagick library.
  • I used this code to create the visualizations for my talk at Perimeter Institute.

Store convolution hyper-parameters for the animated input unfolding.

Parameters:

  • weight (Tensor) –

    Convolution kernel. Has shape [C_out, C_in // G, K1, K2].

  • x (Tensor) –

    Input tensor. Has shape [N, C_in, I1, I2].

  • savedir (str) –

    Directory under which the TikZ code and pdf images are saved.

  • stride (Tuple[int, int], default: (1, 1) ) –

    Stride of the convolution. Default: (1, 1).

  • padding (Tuple[int, int], default: (0, 0) ) –

    Padding of the convolution. Default: (0, 0).

  • dilation (Tuple[int, int], default: (1, 1) ) –

    Dilation of the convolution. Default: (1, 1).

Source code in fdpyutils/tikz/unfold.py
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
def __init__(
    self,
    weight: Tensor,
    x: Tensor,
    savedir: str,
    stride: Tuple[int, int] = (1, 1),
    padding: Tuple[int, int] = (0, 0),
    dilation: Tuple[int, int] = (1, 1),
):
    """Store convolution hyper-parameters for the animated input unfolding.

    Args:
        weight: Convolution kernel. Has shape `[C_out, C_in // G, K1, K2]`.
        x: Input tensor. Has shape `[N, C_in, I1, I2]`.
        savedir: Directory under which the TikZ code and pdf images are saved.
        stride: Stride of the convolution. Default: `(1, 1)`.
        padding: Padding of the convolution. Default: `(0, 0)`.
        dilation: Dilation of the convolution. Default: `(1, 1)`.
    """
    super().__init__(
        weight, x, savedir, stride=stride, padding=padding, dilation=dilation
    )
    self.x_as_vec = rearrange(self.x, "n g c i1 i2 -> n g (c i1 i2)")
    self.weight_unfolded = einsum(
        self.pattern1.float(),
        self.pattern2.float(),
        self.weight,
        "k1 o1 i1, k2 o2 i2, g c_out c_in k1 k2 -> g (c_out o1 o2) (c_in i1 i2)",
    )
    self.output_as_vec = rearrange(
        self.output, "n g c_out o1 o2 -> n g (c_out o1 o2)"
    )
